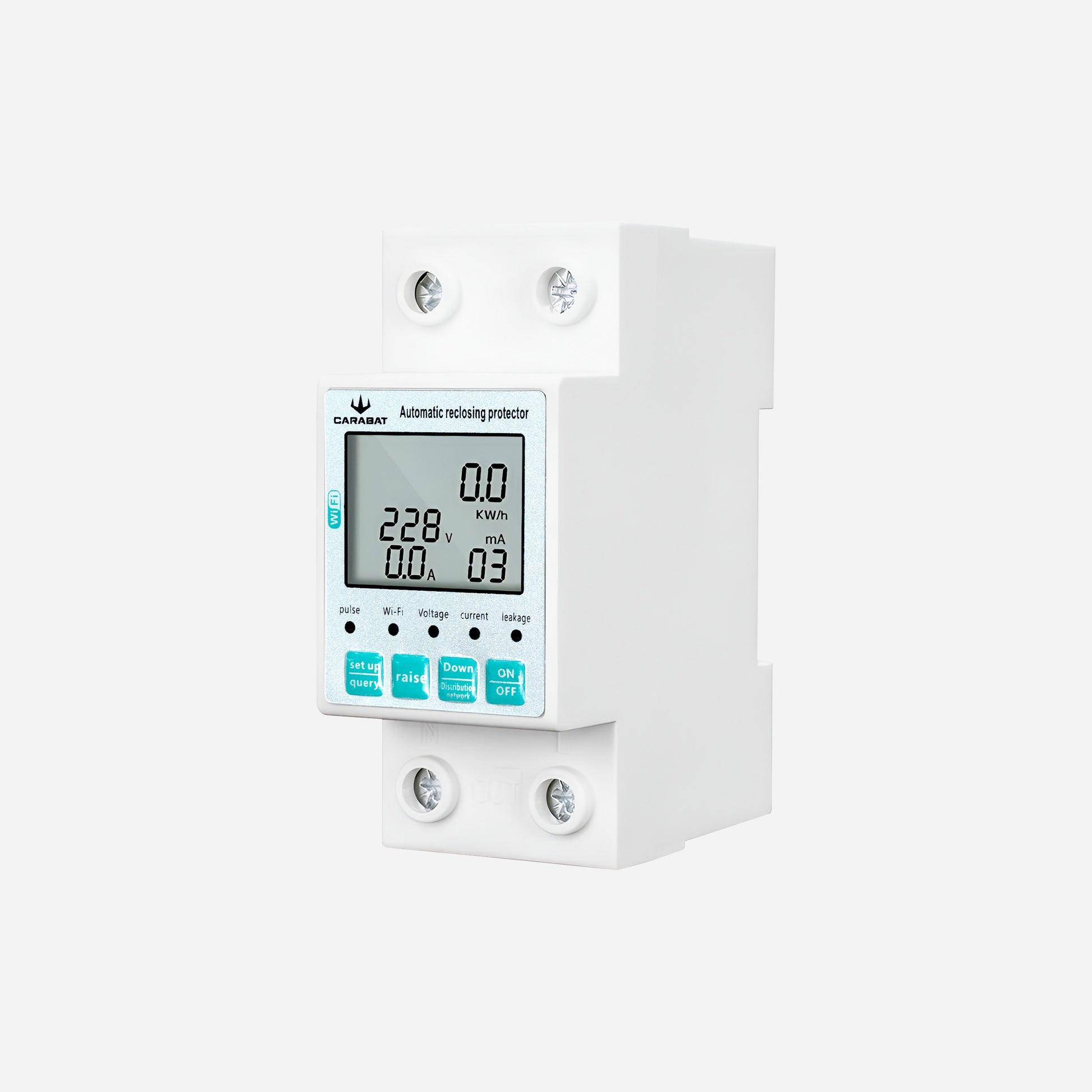

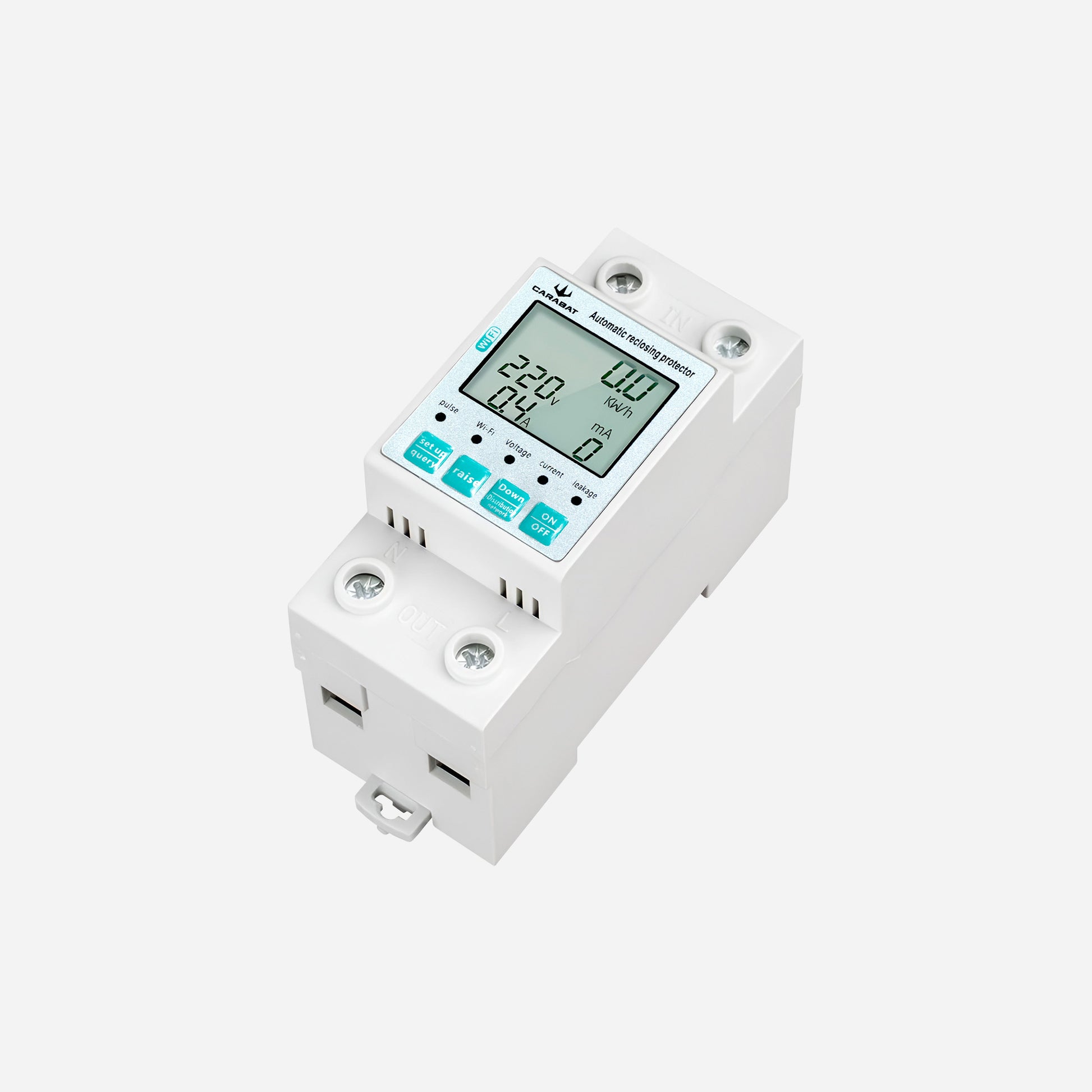

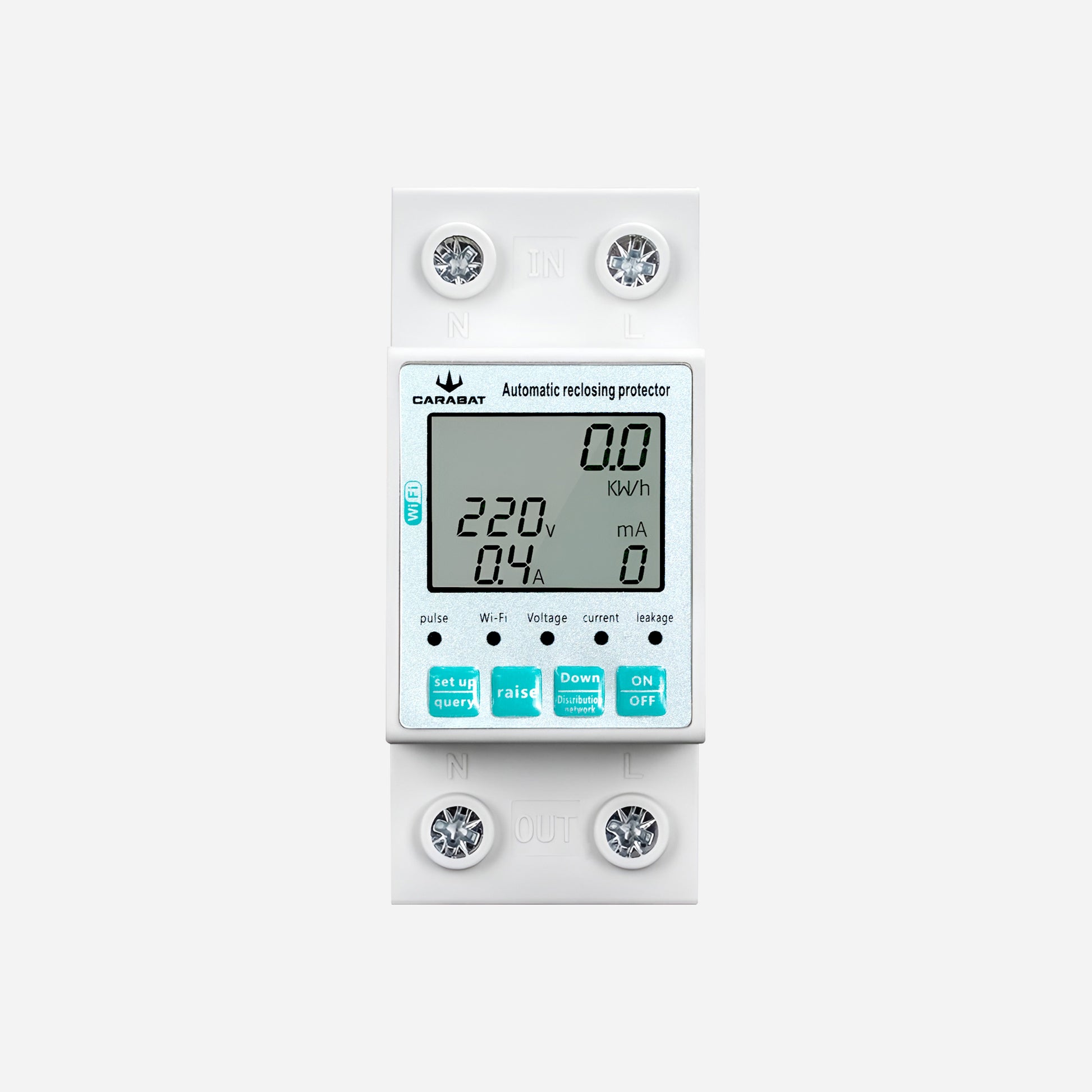

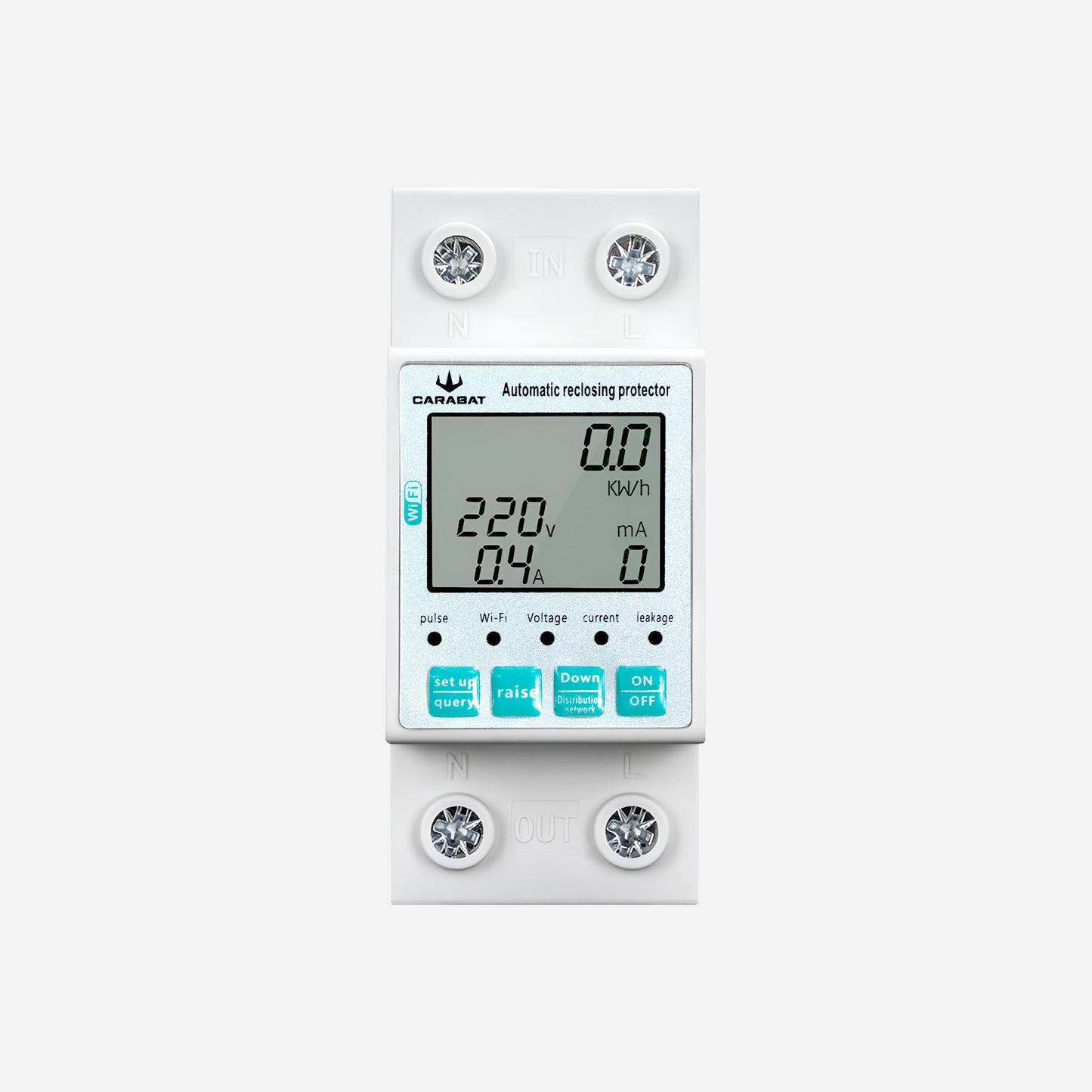

Carabat Intelligent Circuit Breaker

Features

• Smart Remote Control
  • Turn power on or off anytime, anywhere via the ASTANA/TUYA app.
• Comprehensive Protection Settings
  • Adjust over-voltage, under-voltage, over-current, and leakage current directly in the app.
• Multi-Level Safety Functions
  • Includes over-temperature, delay, and trip protection with configurable settings.
• Real-Time Monitoring
  • View current, voltage, leakage current, and total energy (kWh) on your phone.
• Smart Automation
  • Supports voice control, scheduling, countdown, cycle timing, and inching modes.
• High Reliability
  • Stable single-phase operation with adjustable protection ranges and built-in intelligent delay.

Product Details

• Brand: CARABAT
• Category: Smart Home – Intelligent Circuit Breaker (Single Phase)
• Model: SH-CBSPA001
• App Name: ASTANA / TUYA
• Input Voltage: AC 230V (80–400V operating range)
• Frequency: 50/60Hz
• Current Range: 1–63A (adjustable)
• Over Voltage Protection: 120–300V (default: 275V)
• Under Voltage Protection: 80–210V (default: 175V)
• Leakage Protection: 10–99mA (default: 50mA, optional off)
• Over Temperature Protection: 10°C – 85°C (set via app)
• Display: Digital LCD

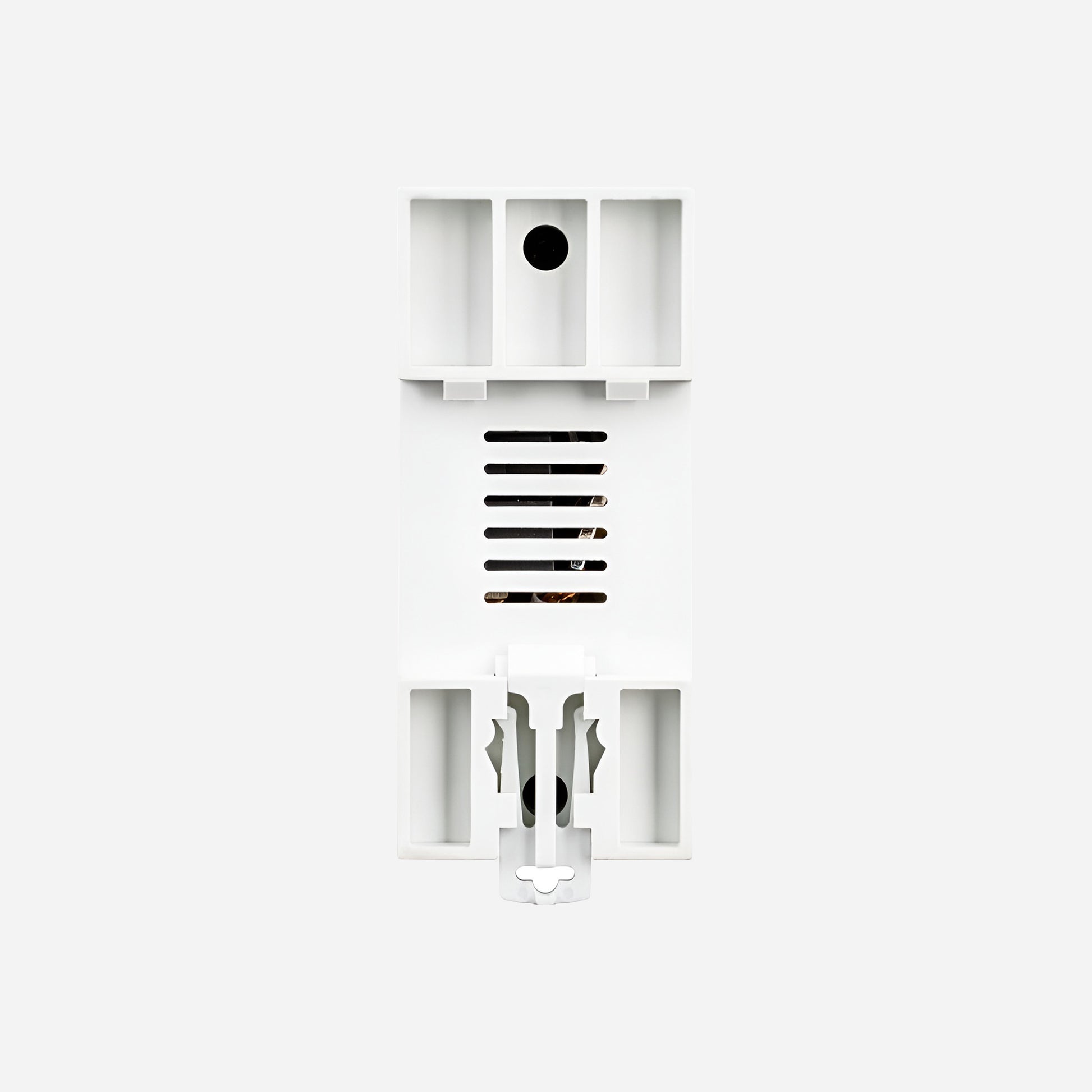

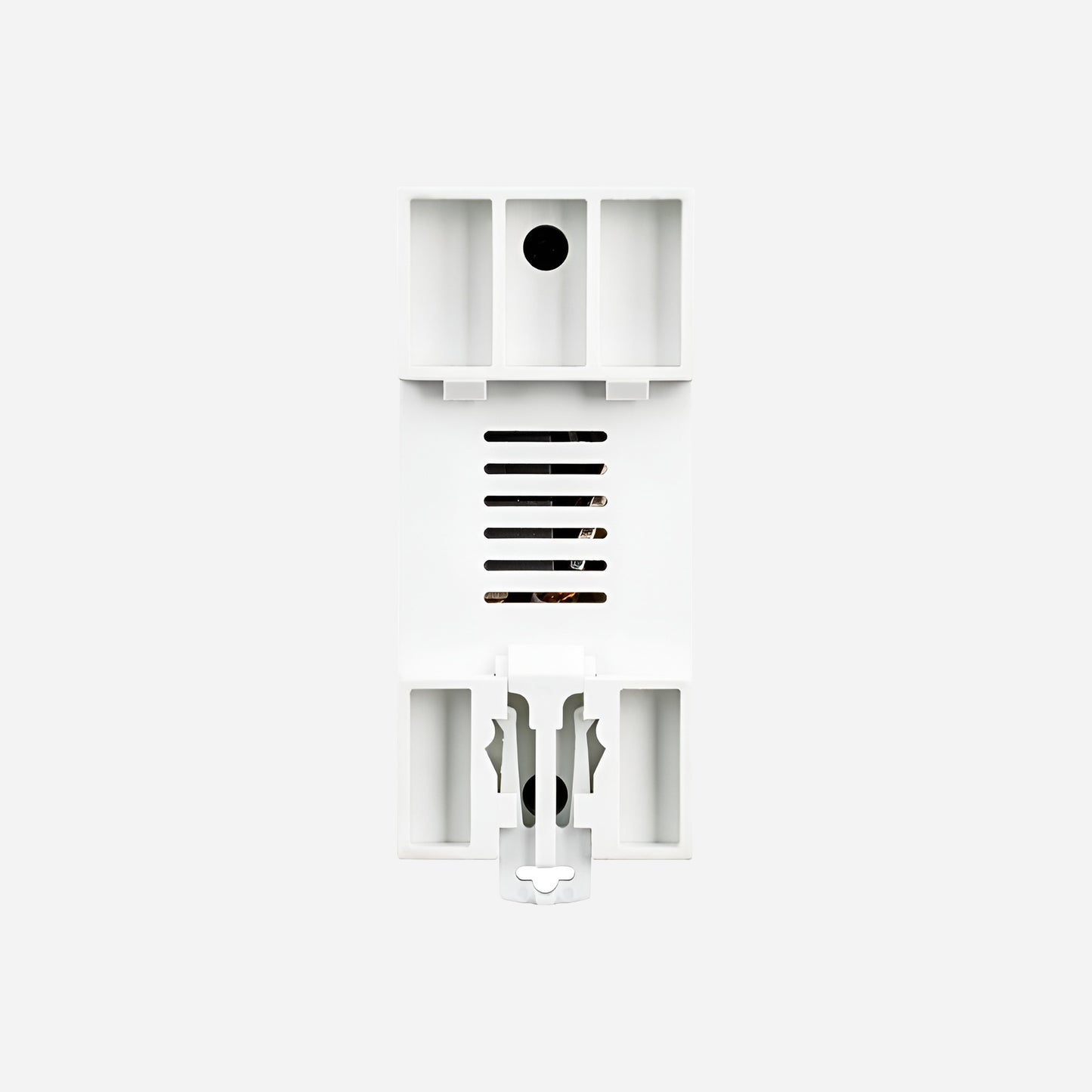

• Mounting Type: DIN Rail
• Power Consumption: <1 kWh/month
• Color: White
• Operating Temperature: –30°C to 70°C
